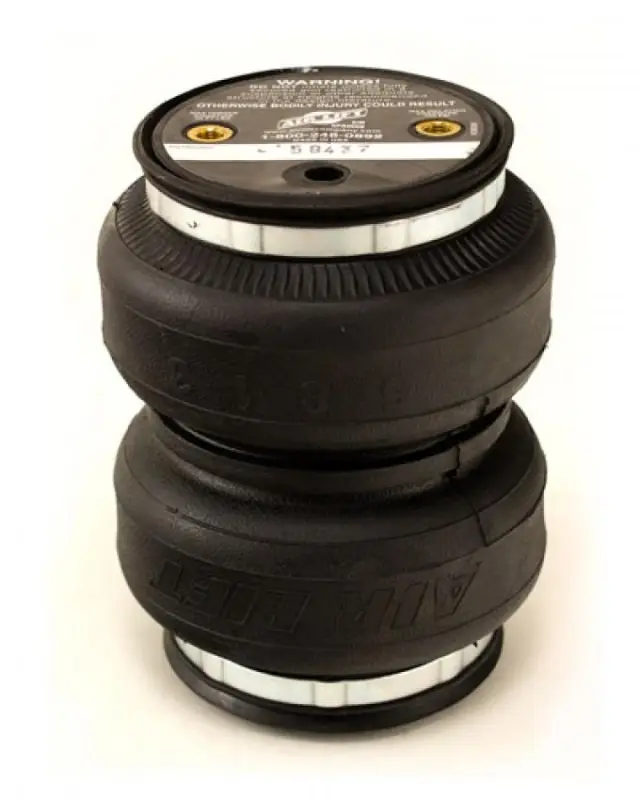

Air Bag 2B-6 (1/8″ Port – Extension 9.1″)
The Ultimate in Air Ride Suspension Parts
Performance air bag 1/8″ Female NPT Port.
Details:
Maximum Extended Height: 9.1″
Compressed Height: 2.3″
Maximum Diameter: 7″
Maximum Load at 100 PSI: 2,270 lbs.
Design Height: 5.0-7.0″
Air Fitting Size: 1/8″
Top Fastener: 3/8″ – 24
Bottom Fastener: 3/8″ – 24
Mounting Hole Center: 2.75″
Product Code: 30010012
OE Code: 58437
