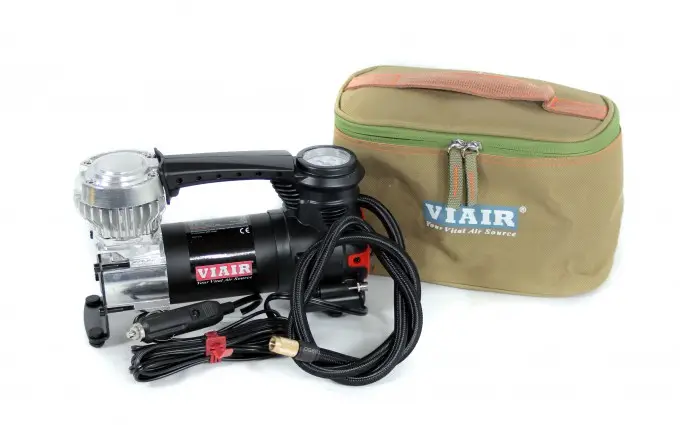

Viair 85P Portable Air Compressor sats (60 PSI), w/ Twist-on Tyre ventil Connector
Portable Air Ride Solutions, Ultimate Air Ride Parts
85P is a small portable compressor with a built-in LED work light, capable of inflating up to 31-inch tires by simply plugging into your cigarette lighter power port (15 amps max.). Connect the screw-on tire chuck to a tire ventil stem before turning the unit on.
Tyre pressure can be monitored using the gauge incorporated into the top of
the unit.
FEATURES
– 120 PSI Pressure Gauge
– LED Work Light / Power Indicator
– Solid Brass Twist-on Tire Chuck
– Accessory Power Plug
– 3 pc. Inflation Tips sats
–
–
–
–
–
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 20 min. @ 30 PSI
– Max. Working Pressure: 60 PSI
– Max. Amp Draw: 15 Amps
– Ingress Protection Rating: IP53
– Max. Ambient Temp: +158°F
– Min. Ambient Temp: -4°F
– Dimensions: 9.1″L x 3.1″W x 5.6″H
– Net Weight: 4.30 lbs.
– Power Cord Length: 10 ft.
– Air Hose Length: 3 ft.
RECOMMENDED COMPONENTS
PERFORMANCE DATA
PSICFMABARLPMA
01.2613035.713
101.22131.033.513
201.13132.029.314
301.02143.024.815
400.92154.020.513
500.8014
600.7113
* Supply Voltage: 13.8 Volts
FILL RATES
195/70R14FILL RATE
0 to 30 PSI2 min. 10 sec. (±10 sec.)
15 to 30 PSI1 min. 10 sec. (±05 sec.)
225/60R18FILL RATE
0 to 30 PSI3 min. 00 sec. (±10 sec.)
15 to 30 PSI1 min. 35 sec. (±05 sec.)
31″ X 10.5″FILL RATE
0 to 30 PSI4 min. 50 sec. (±15 sec.)
15 to 30 PSI2 min. 35 sec. (±05 sec.)
Product Code: 30010110
OE Code:
